YMQ系列沖切抹角機主要針對各種異形商標，如各類酒、食品、飲料標鑒的成型模切，還可廣泛應用于裁切各種大小的撲克牌、鋁塑袋、賀年卡、方便面蓋、筆記本、吊牌、小冊子等，以及各種特殊形狀的兒童讀物卡片書籍。
本機采用液壓系統，工作穩定可靠、模切成品表面光潔，尺寸統一、整齊，效率更高;左右各有光電眼，使用更安全;裝料平臺可以進行左右前后與整體調節，使用更加方便。
YMQ series punching and wiping angle machine is mainly used for cutting all kinds of special-shaped trademarks, such as all kinds of wine, food and beverage labels, and can also be widely used for cutting all kinds of playing cards, aluminum plastic bags, greeting cards, instant noodle covers, notebooks, credit cards, tags, brochures and other special shapes of children's reading card books.
The machine adopts the hydraulic system, which is stable and reliable, the surface of die-cut products is bright and clean, the size is uniform, neat, and the efficiency is higher; there are photoelectric eyes on the left and right, which is safer to use; the loading platform can be adjusted before and after the left and right and as a whole, which is more convenient to use.
沖切抹角機YMQ-115新技術參數
沖切抹角機YMQ-115新技術參數
| 型號 | YMQ-115(新) |

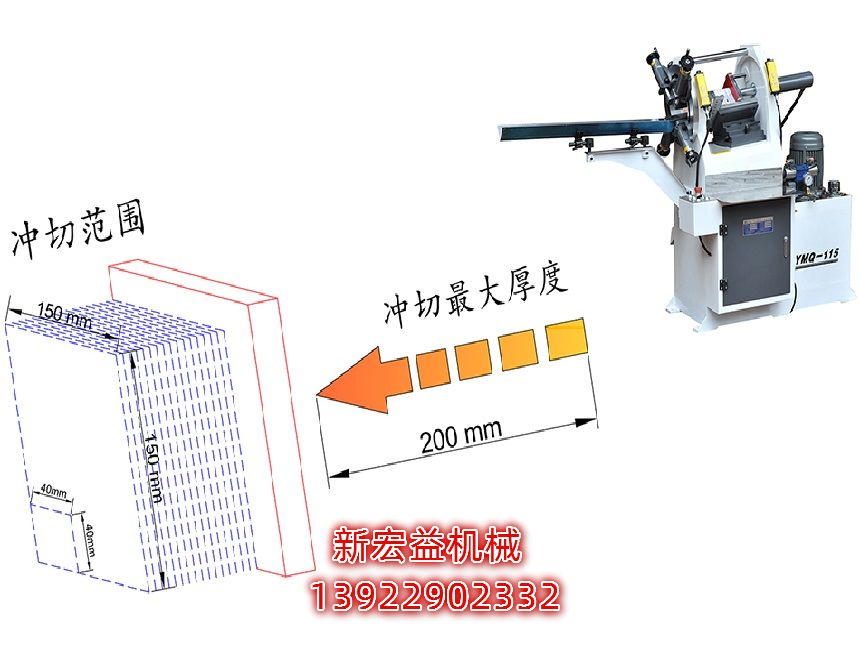

| 至大模切尺寸 | 150x150（mm） |
| 至小模切尺寸 | 40x40（mm） |
| 至大模切厚度 | 200（mm） |
| 活塞桿直徑 | Φ40（mm） |
| 流量 | 15L/min |
| 模切壓力 | 3T |
| 工作速度 | 80mm/s |
| 電機功率 | 3HP/2.25KW |
| 工作電壓 | 380V |
| 包裝外形尺寸 | 1350x850x1500（mm） |
| 整體重量 | 680kg |
